Commodore 64 Hardware; Architecture of a Legend

When we talk about the Commodore 64, we often think of its games and memories. But what made this machine truly special was its intelligent hardware architecture that delivered power beyond expectations at an affordable price. In this article, we examine the various hardware layers of this legendary computer.

The 6510 Processor; The Mastermind

The beating heart of the Commodore 64 was the 8-bit 6510 processor. Derived from the famous 6502 family, it ran at 1 MHz. At first glance, this speed might seem negligible, but the efficient architecture of this processor combined with powerful peripheral chips enabled games and applications that were unparalleled at the time.

The 6510 processor had a unique feature: a built-in 6-bit I/O port used for controlling memory banks and managing peripheral chips. This clever design allowed Commodore to keep the system simple and affordable without requiring additional chips.

The VIC-II Graphics Chip; Image Magic

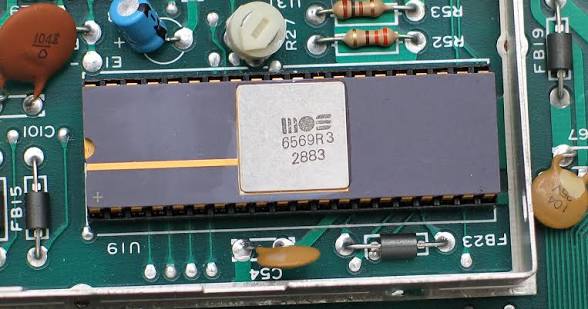

The VIC-II chip was undoubtedly one of the main reasons for the Commodore 64's success. This graphics chip, responsible for generating all visuals, had stunning capabilities: 16 colors, 8 independent moving sprites, 320×200 pixel resolution in standard mode, and even special graphics modes for games.

Sprites were one of the key features of VIC-II. Each sprite could move independently, collide with other sprites, and even cross screen edges. Game programmers used this capability to create characters and visual effects. Hardware sprite movement without processor intervention drastically reduced processing load.

The VIC-II chip also had special graphics modes that enabled creative programmers to push beyond apparent limitations. Techniques like per-scanline color changes, sprite multiplexing, and special effects made Commodore 64 games visually distinctive.

The SID Sound Chip; Music Revolution

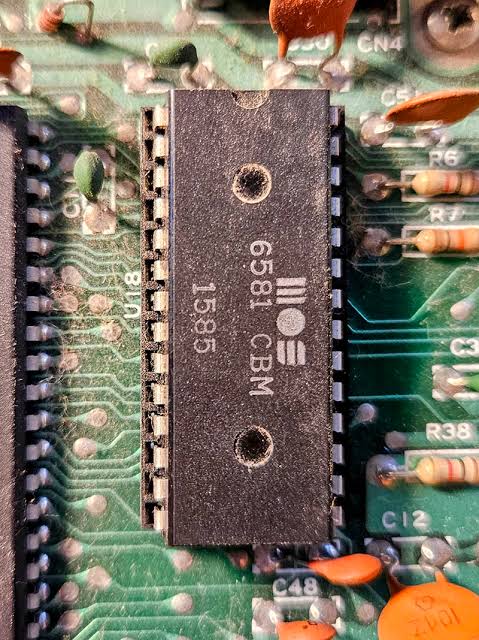

The SID chip (Sound Interface Device) can be considered the most advanced sound chip of the 1980s. With 3 independent sound channels, 4 waveform types (square, triangle, sawtooth, and noise), programmable filters, and modulation capabilities, it produced sound still heard in modern electronic music.

What made SID special was its incredible flexibility. Programmers could directly control sound registers and create sounds beyond the standard capabilities of sound chips at the time. Musicians used SID to create complex melodies, sound effects, and even digital samples.

Today, chiptune music rooted in the SID chip has become an independent music genre. Artists worldwide still use this chip for music production, and the SID music scene remains active and vibrant.

Peripheral Chips and Memory

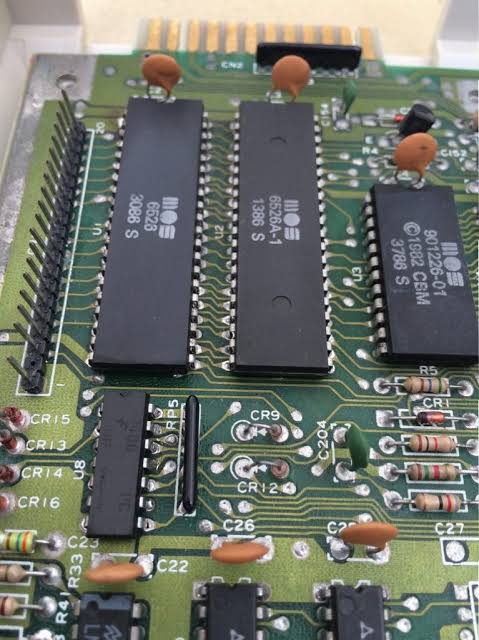

In addition to the processor and graphics/sound chips, the Commodore 64 had two CIA chips (Complex Interface Adapter) responsible for I/O management. These chips managed the keyboard, joysticks, serial port, user port, and other peripheral connections.

The Commodore 64 shipped with 64 kilobytes of RAM, a significant amount at the time. 38 kilobytes were available for BASIC programs, with the rest used for the operating system, screen memory, and other system functions. The 20-kilobyte ROM contained BASIC interpreter version 2.0 and the OS kernel.

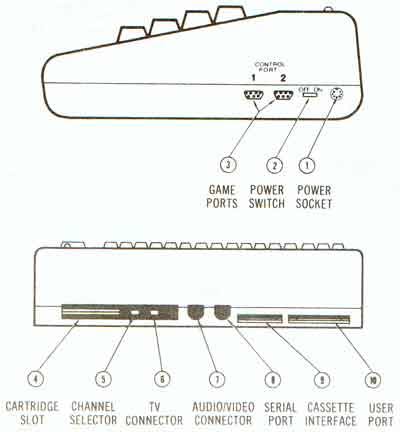

The Commodore 64's communication ports included a cartridge port, serial port for floppy drives and printers, composite video port, RF port for TV connection, two joystick ports, and a datasette port. This variety of ports allowed users to expand the machine with a wide range of peripherals.

Intelligent Architecture

What distinguished the Commodore 64's architecture was the intelligent division of tasks between the processor and peripheral chips. The CPU was free for computational work while VIC-II and SID independently generated graphics and sound. This architecture, similar to modern computers with dedicated GPUs, was very advanced for the 1980s.

This design allowed games and applications to use the full power of the system without encountering processing bottlenecks. Programmers could delegate graphics and sound to specialized chips and keep the processor free for game logic and calculations.

The Commodore 64 hardware is an example of intelligent engineering that, through the right combination of components and efficient design, created a computer that lasted over a decade in a competitive market. This architecture inspired subsequent generations of home computers and even modern systems.
